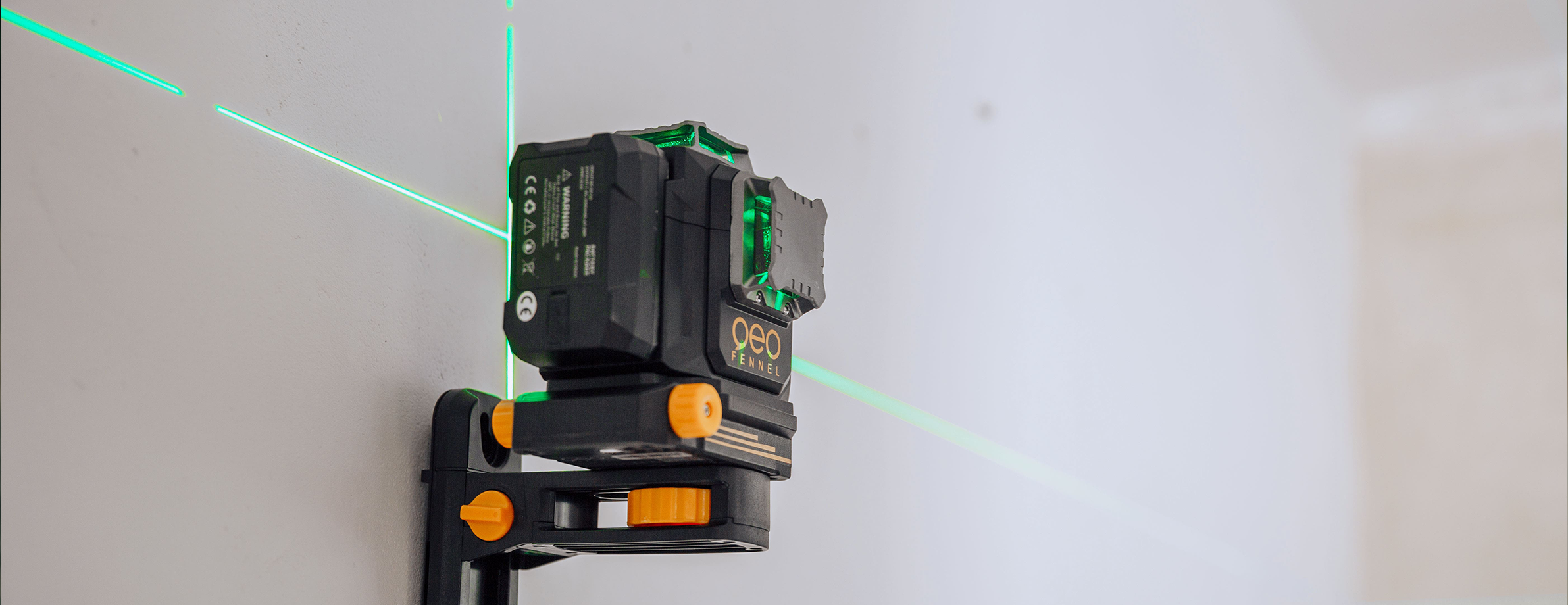

Cross Line & Multi-Line Laser Level Buying Guide

A cross line or multi-line laser level projects bright, self-levelled reference lines onto walls, floors and ceilings, so one person can set out cabinets, ceilings, tiles, framing and fixtures faster and more accurately than with a spirit level. Below are our top 5 laser levels and top 3 laser receivers, picked from the current range we stock and the models our customers buy most, with the specs that matter side by side.

Top 5 Cross Line & Multi-Line Laser Levels


Feature	geo-FENNEL Geo1X-GREEN	geo-FENNEL Axeo® 3D	geo-FENNEL FLG 70 GREEN	Leica LINO L6G-1	Bear Servo 360GP
Best For	Best seller, cross line	All-rounder	Highest accuracy	Longest run time	8-line layout
Price Range	Entry level, around $250 budget	Mid-range, around $500 budget	Professional, around $1,750 budget	Professional, around $1,000 budget	Professional, around $1,250 budget
Laser Lines	Cross line	3 x 360°	360° horizontal + 4 vertical	3 x 360°	4 horizontal + 4 vertical
Beam Colour	Green	Green	Green	Green	Green
Accuracy	± 3 mm / 10 m	± 3 mm / 10 m	± 1 mm / 10 m	± 2 mm / 10 m	± 1 mm / 10 m
Self-Levelling Range	± 3°	± 3°	± 3°	± 4°	± 3.5°
Working Range (radius)	30 m	30 m	30 m	35 m	Not published
Range with Receiver	70 m	60 m	80 m	70 m	up to 70 m
Protection Class	IP54	IP54	IP54	IP54	IP54
Power	4 x AA	Li-Ion (USB-C)	Li-Ion or alkaline	Li-Ion or 3 x AA	4 x AA or rechargeable
Run Time	5 h	6 h (3 lines)	4–8 h	up to 11 h	8 h+
Part Number	541250	534700	582500	912971	I-B-SRVO360GP

Price ranges are a guide only. Follow the product links for current pricing.

Which laser level should I buy?

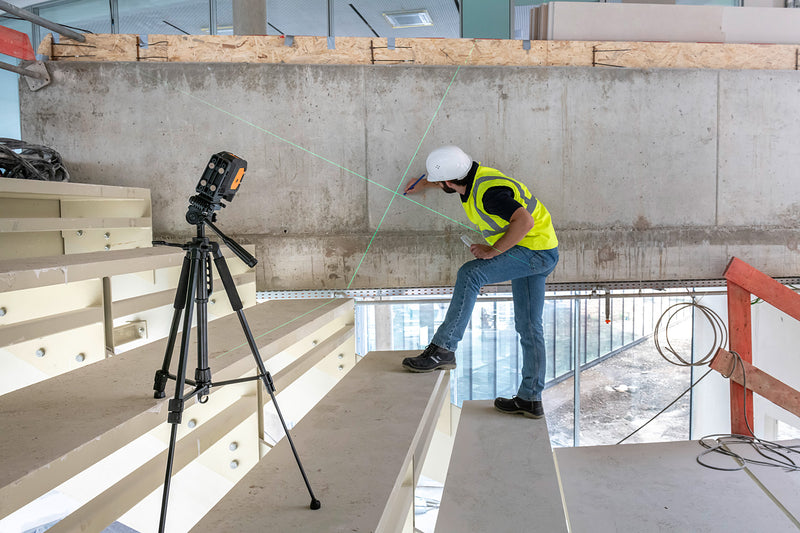

Most popular cross line laser: geo-FENNEL Geo1X-GREEN

The geo-FENNEL Geo1X-GREEN is the laser level our customers buy most. It projects one bright green laser cross with ±3 mm at 10 m accuracy, runs on 4 AA batteries, and can be locked for angled lines such as stair rails. With a receiver in pulse mode, its 30 m working radius extends to 70 m. It suits renovations, shelving, electrical and general fit-out work where you only need one wall at a time.

Best all-rounder: geo-FENNEL Axeo 3D

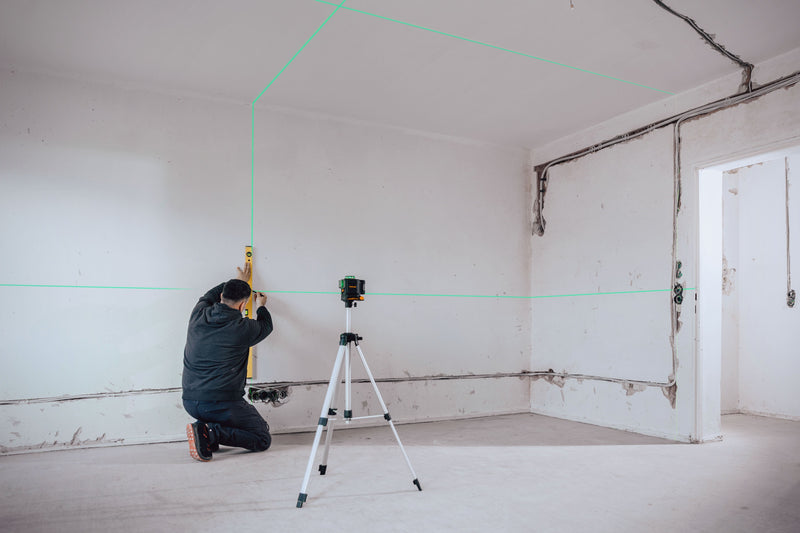

The geo-FENNEL Axeo® 3D is our first recommendation when you want every wall, the floor and the ceiling covered from one position. Its three 360° green lines form six laser crosses. Fine side adjustment keeps the laser cross on your mark while you rotate the vertical line, each line switches on separately, and it comes with a remote control, a height-adjustable multifunctional mount, a ceiling-rail adapter and a USB-C rechargeable Li-Ion battery. Accuracy is ±3 mm at 10 m, with a 30 m working radius that extends to 60 m with a receiver in pulse mode.

Highest accuracy: geo-FENNEL FLG 70 GREEN

The geo-FENNEL FLG 70 GREEN is built for work where every millimetre counts, such as ceilings, partitions and commercial fit-outs. Motorised self-levelling holds ±1 mm at 10 m. It projects a 360° horizontal line, four vertical lines at 90° to each other, a plumb cross on the ceiling and a plumb beam to the floor. The remote control tilts the laser plane in coarse or fine steps for slopes, and the laser has an integrated floor tripod. Its working radius is 30 m, or 80 m with a receiver.

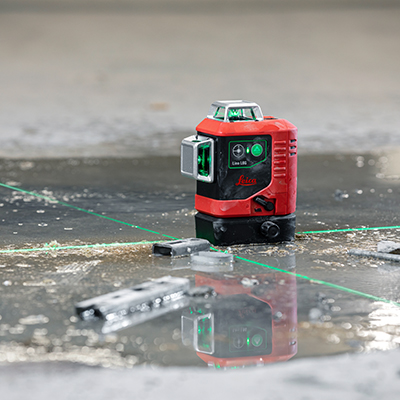

Longest run time: Leica LINO L6G-1

The Leica LINO L6G-1 is the pick for builders and fit-out contractors who want a full 3 x 360° laser that lasts all day. It levels to ±0.2 mm per metre (±2 mm at 10 m), self-levels over ±4°, and runs up to 11 hours on its Li-Ion pack, with AA batteries as a backup. Its working radius is 35 m, or 70 m with the Leica RGR 200 receiver. It is also available as a kit with the RGR 300-D digital receiver, or as the L6G All-in-One Pro Kit with a receiver and tripod.

Eight-line layout: Bear Servo 360GP

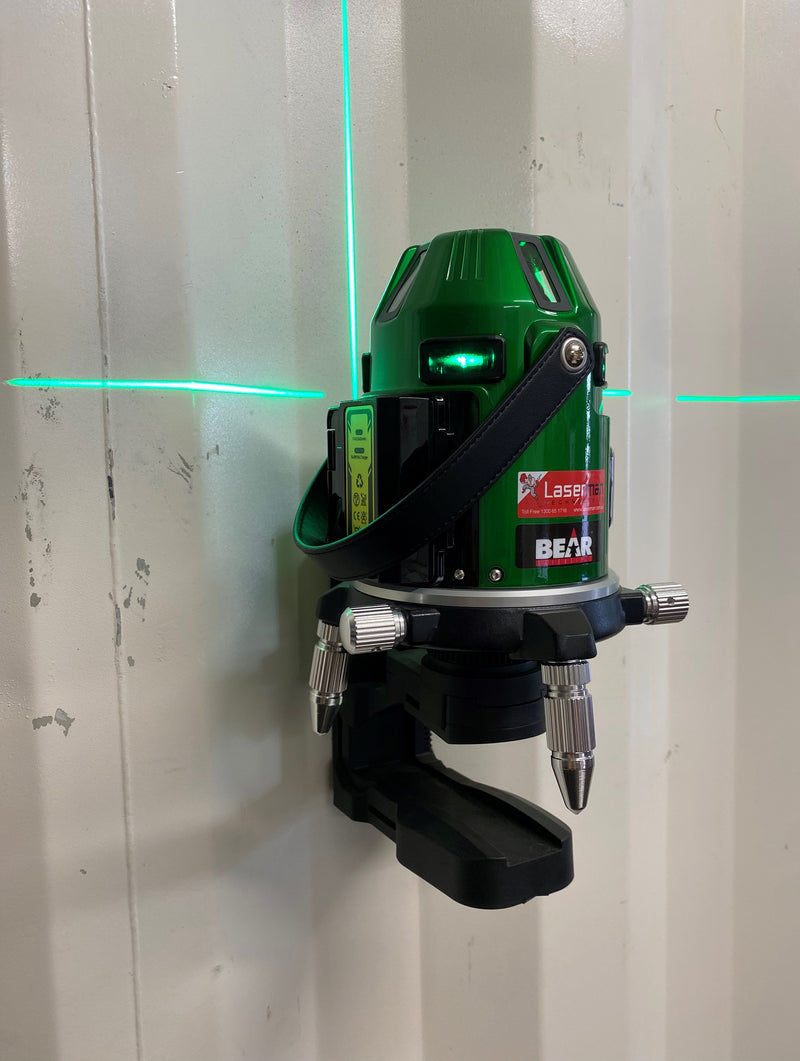

The Bear Servo 360GP projects four horizontal and four vertical green lines plus a plumb point for full 360° layout, accurate to ±1 mm at 10 m. It self-levels over ±3.5°, works up to 70 m with a detector, and runs more than 8 hours on rechargeable batteries, on 4 AA batteries, or from the mains adapter. It comes in a heavy-duty carry case with laser glasses, a target, rechargeable batteries and a charger.

Just Want One Line?

We are often asked for a laser that projects just one bright line, usually one that can be seen outdoors or across a long distance. That is a different product category from the laser levels above. A cross line or multi-line laser level is a self-levelling layout tool, while a single-line laser is mounted in place and aimed at the job. If what you need is a level reference outdoors, such as for site levels, concreting, drainage or fencing, a rotary laser level is generally the better choice. See our rotary laser level buying guide.

If you need the visible line itself, for alignment, positioning or marking, our pick is the Z-LASER MagicLine. It projects a single green 520 nm line with a 70° fan angle at 600 mW while remaining Laser Class 2M, and Z-LASER describes it as the world's brightest eye-safe laser in its class. That brightness is why it is used where a standard laser line is hard to see, such as outdoors and in brightly lit work areas. The line width is set with a manual focus, the housing is IP67 rated, and it runs from a 12–24 VDC supply or a mains power supply. It is used in transport and logistics, timber, glass and stone processing, and machine vision.


Feature	Z-LASER MagicLine
Best For	One bright line for alignment and marking
Price Range	Industrial, around $6,000 budget
Laser Lines	Single line (70° fan angle)
Beam Colour	Green (520 nm)
Output Power	600 mW
Laser Class	2M
Self-Levelling	No (fixed mount, aligned by hand)
Focus	Manual (100 mm to 10 m)
Protection Class	IP67
Power	12–24 VDC, or 110–230 VAC power supply
Part Number	Z600-Q1-F-520-ML70

Price ranges are a guide only. Follow the product links for current pricing.

Top 3 Laser Receivers for Line Lasers

A laser receiver (also called a laser detector) picks up the laser line electronically when it is too faint to see, such as in bright sunlight or over long distances. Set the laser to pulse mode, mount the receiver on a staff or clamp, and it beeps and shows on screen when you are on the line.


Feature	Onyx Omni 60	Leica RGR 300-D	geo-FENNEL FR 75-MM
Best For	Any brand (line & rotary)	Leica LINO lasers	geo-FENNEL line lasers
Price Range	Around $400 budget	Around $300 budget	Around $500 budget
Readout	Digital mm	Digital mm/inch, front & back	Digital mm, front & back
Readout Accuracy	0.5 mm	± 0.5 / 2 / 5 mm (switchable)	± 1 mm
Range with Line Lasers	up to 75 m radius	up to 80 m	Laser dependent (60–80 m radius)
Receiving Window	60 mm	85 mm	100 mm
Beams Detected	Red & green	Red & green	Red & green
Power	1 x AA	2 x AA (24 h)	4 x AA (55 h)
Part Number	LR60MM	1017990	257200

Price ranges are a guide only. Follow the product links for current pricing.

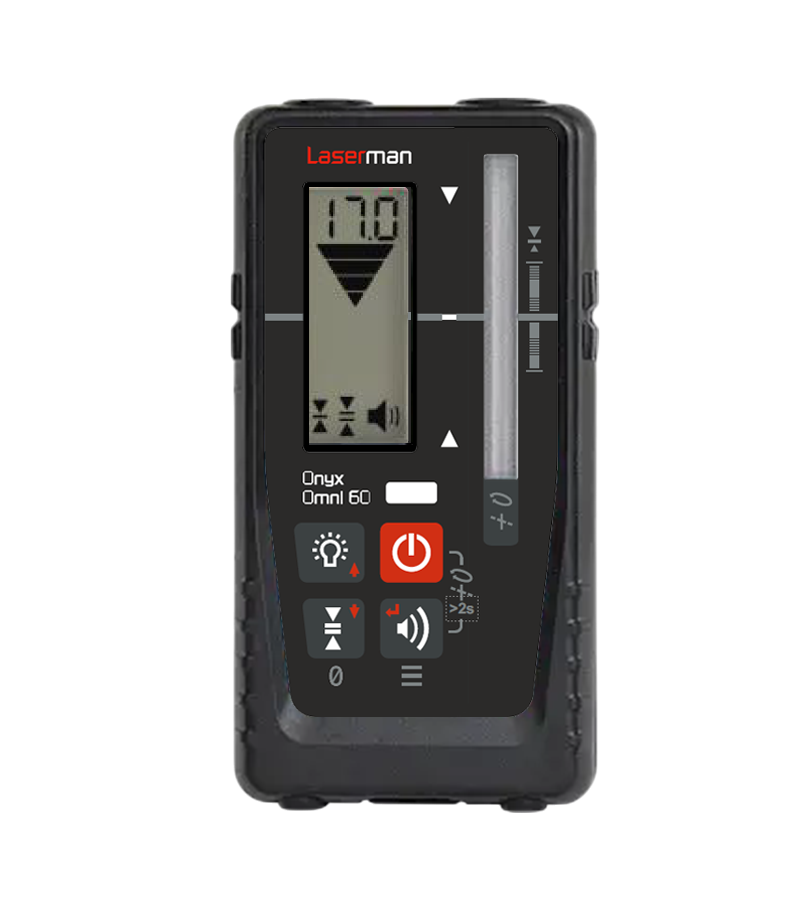

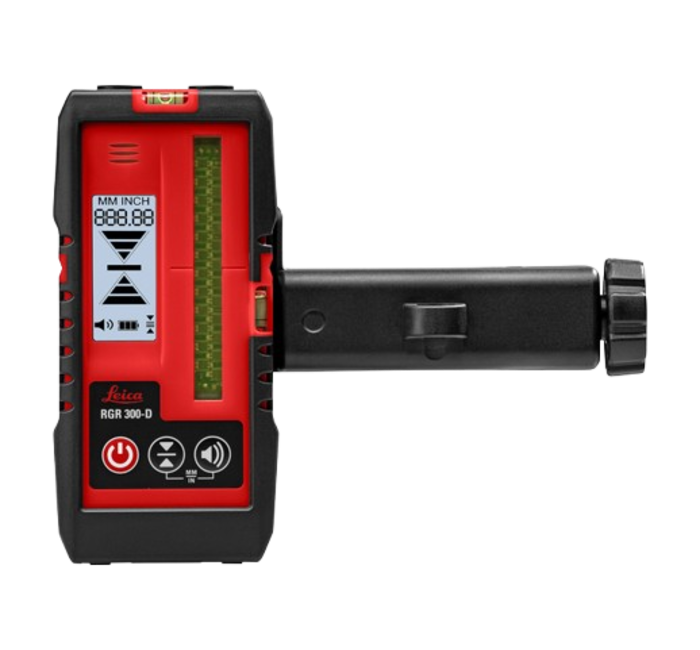

The Onyx Omni 60 is the receiver we sell most. It detects red and green beams from both line and rotary lasers, with a 0.5 mm digital readout, so one receiver covers every laser on site. It is also offered as an add-on with the FLG 70 GREEN and the Bear Servo 360GP. The Leica RGR 300-D is the match for Leica LINO lasers (P5, L2, L2G, L2P5, L2P5G, L6R and L6G) and shows how far you are above or below the line in millimetres on both sides. The geo-FENNEL FR 75-MM pairs with geo-FENNEL line lasers such as the Geo1X-GREEN, Geo4-XR and FLG 70 GREEN, has an extra-long 100 mm receiving window and is IP65 rated.

More Laser Levels & Receivers We Stock

Leica LINO

geo-FENNEL

Imex

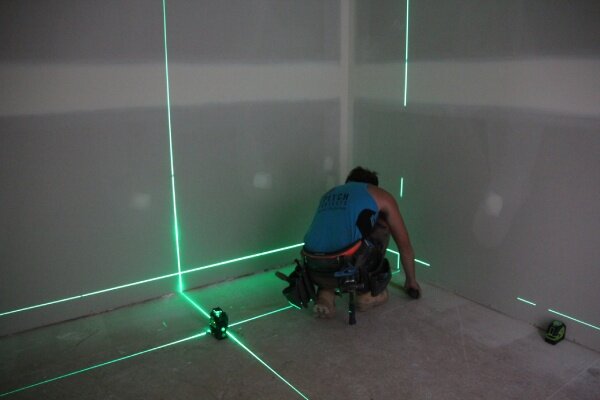

Imex ELX4 4 x 360° green mini laser

Line laser receivers

Laser Level Frequently Asked Questions

What is the best laser level in Australia?

It depends on the job. For single-wall work, the geo-FENNEL Geo1X-GREEN cross line laser is our most popular choice. For full-room layout, a green 3 x 360° multi-line laser gives the most value, and our top pick is the geo-FENNEL Axeo 3D. For the tightest accuracy, choose the geo-FENNEL FLG 70 GREEN (±1 mm at 10 m), and for the longest run time, the Leica LINO L6G-1 (up to 11 hours).

How much does a laser level cost?

For a budget of around $250, the geo-FENNEL Geo1X-GREEN is our best-selling cross line laser. Around $500 buys a green 3 x 360° multi-line laser such as the geo-FENNEL Axeo 3D or Imex ELX4. Professional lasers with longer run times, tighter accuracy or more lines suit a budget of around $1,000 to $2,000, such as the Leica LINO L6G-1 (around $1,000), the Bear Servo 360GP (around $1,250) and the geo-FENNEL FLG 70 GREEN (around $1,750). A line laser receiver adds around $200 to $500, and kits with a laser, receiver and tripod suit a budget of around $1,250 to $1,500.

Should I buy a green or red laser level?

Green. The human eye sees green laser light as much brighter than red, and Leica rates its green LINO lines as about four times more visible than red. That makes green lines easier to see in bright rooms and across larger spaces. Red lasers cost less and are fine for small indoor jobs.

What is the difference between a cross line and a 3 x 360° laser?

A cross line laser projects one horizontal and one vertical line in front of it, which suits single-wall jobs like shelving, switchboards and picture hanging. A 3 x 360° laser projects a horizontal line and two vertical lines all the way around the room, forming six laser crosses, so you can work on every wall, the floor and the ceiling without moving the laser.

What does laser level accuracy mean?

Accuracy is how far the line can deviate from true level over a set distance. ±2 mm at 10 m means the line is within 2 mm of perfectly level 10 m from the laser. For cabinetry, tiling and ceilings, ±2 mm at 10 m or better is a good target, and ±1 mm at 10 m suits precision fit-out.

Can I use a line laser outdoors?

Yes, for short jobs, by switching the laser to pulse mode and using a laser receiver, because the line is hard to see in sunlight. If most of your work is outdoors, such as site levelling, concreting or excavation, a rotary laser level is the better tool. See our rotary laser level buying guide.

Where can I buy a laser level in Australia?

Laserman Technologies stocks laser levels and receivers from geo-FENNEL, Leica, Bear, Imex and more at laserman.com.au, and ships Australia-wide, with free shipping on orders over $250. We also service, repair and calibrate the laser levels we sell. Our team in Perth can help you choose the right laser for your trade: call +61 8 9335 1718, Monday to Friday 8:30 am to 4:30 pm WST, or email team@laserman.com.au.
