Key Features & Technical Details at a Glance

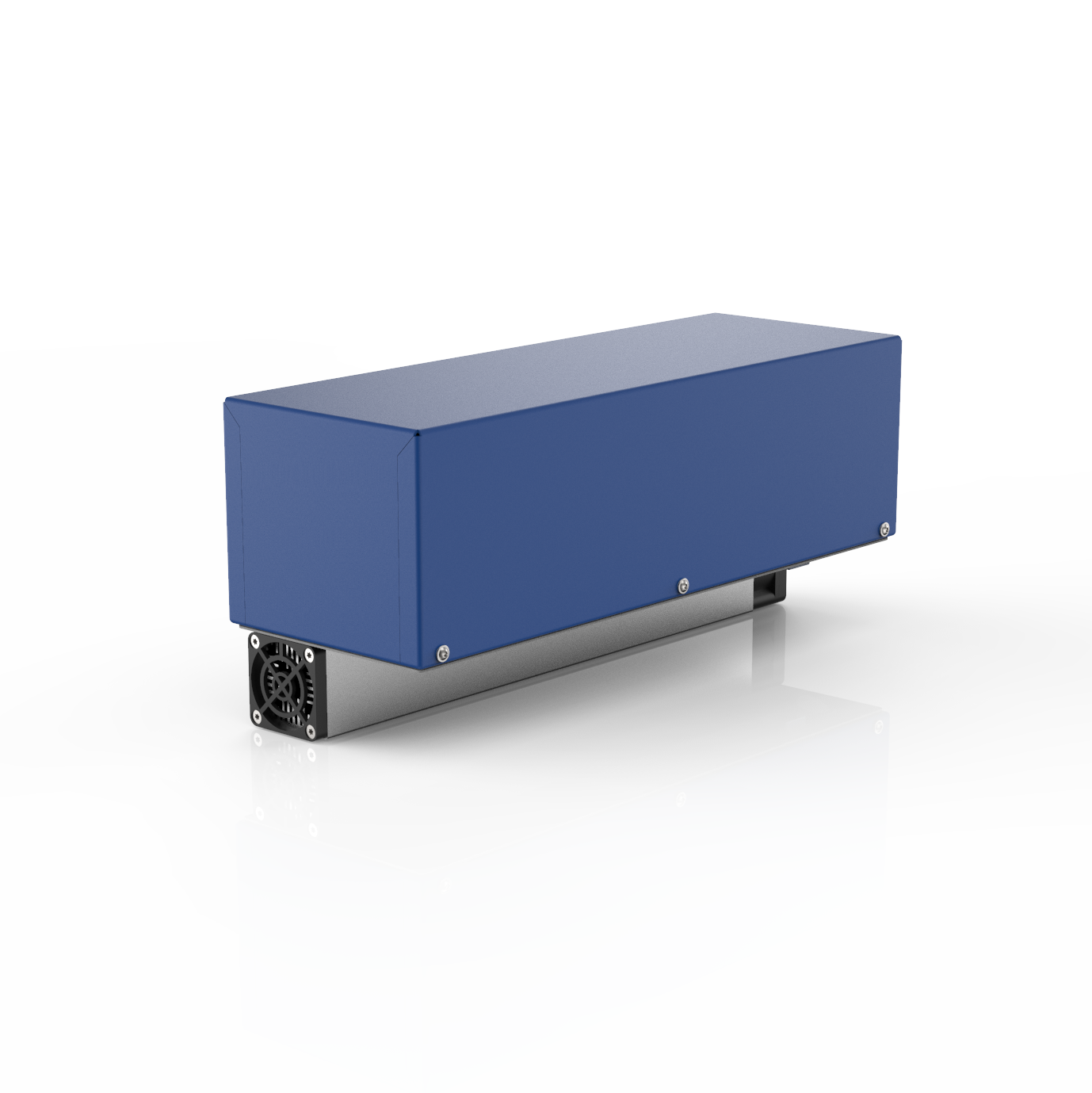

The ZLP1 is a compact and cost-effective laser projector designed for industrial applications. It is particularly suited for small working areas and short distances, making it ideal for picking, logistics, and worker guidance tasks. By projecting optical work instructions directly onto the workspace, the ZLP1 supports employees in real time, increasing both efficiency and process reliability. The projector is eye-safe in laser class 2M and can be controlled via the intuitive ZLP-Suite software or integrated into existing applications through an API. Additional software modules allow flexible function extensions, ensuring the ZLP1 can be adapted precisely to individual requirements.
Intuitive software
|
Opening angle 60°
|
Optimized for 2D and 3D applications
|
Designed for multi-projection systems
|
active & passive cooling available
|
IP 54
|
Additional Information
| Weight | 3, 4kg |
| Size | 314 x 111 x 96mm |
| Wavelength | 520nm |
| Output Power | 5mW |
| Beam Angle | 60° x 60° |
| Projection | 2D and 3D contours |
| Focus | Digital focus |
| Supply Voltage | 24VDC |
| IP Protection Class | IP 54 |
| Application Area | Worker guidance, OEM, Positioning |
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
Key Features & Technical Details at a Glance
The ZLP1 is a compact and cost-effective laser projector designed for industrial applications. It is particularly suited for small working areas and short distances, making it ideal for picking, logistics, and worker guidance tasks. By projecting optical work instructions directly onto the workspace, the ZLP1 supports employees in real time, increasing both efficiency and process reliability. The projector is eye-safe in laser class 2M and can be controlled via the intuitive ZLP-Suite software or integrated into existing applications through an API. Additional software modules allow flexible function extensions, ensuring the ZLP1 can be adapted precisely to individual requirements.
|
Intuitive software
|
Opening angle 60°
|
|
Optimized for 2D and 3D applications
|
Designed for multi-projection systems
|
|
active & passive cooling available
|
IP 54
|
Additional Information
| Weight | 3, 4kg |
| Size | 314 x 111 x 96mm |
| Wavelength | 520nm |
| Output Power | 5mW |
| Beam Angle | 60° x 60° |
| Projection | 2D and 3D contours |
| Focus | Digital focus |
| Supply Voltage | 24VDC |
| IP Protection Class | IP 54 |
| Application Area | Worker guidance, OEM, Positioning |
