A new generation in visibility and versatility is here!

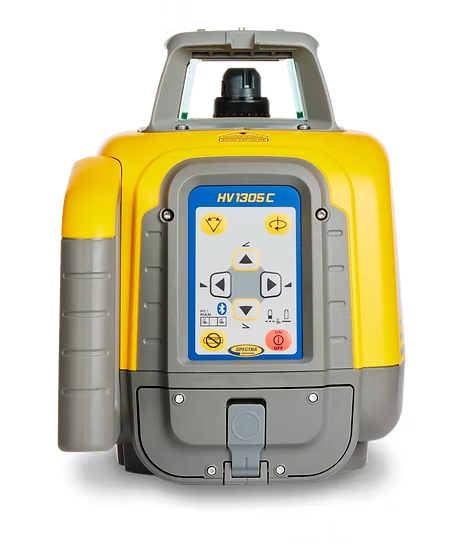

The automatic self-leveling Spectra Precision® HV1305C red beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
Key features & benefits:
Complete leveling crew in a case - carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
-
Automatic horizontal and vertical self-leveling
-
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
-
Working range of up to 1200m (4,000 ft) diameter with HL760
-
High-visibility beam – easily visible even in brightly lit conditions
-
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
-
Rotation selection of 0,10,100, 200,300 or 600 RPM
-
Remote control or remote control app allows operation of all laser functions from anywhere on the job site
-
Bluetooth connection allows laser control with a smartphone
-
Extremely durable and portable with a 5 Year warranty
Specifications
Leveling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter w/HL760
Typ.1200 m (4000 feet)
Rotation
Preset 0, 10, 100, 200, 300 and 600 rpm Adjustable in 10 rpm increments >100rpm
Scan Angles
Preset 5°, 15°, 45° and 90°
Adjustable in 5° increments
Laser Type
630 – 643 nm
Laser Class
HV1305C Class 2
HV1305C Class 3
(Class 2 available in Europe)
Self-leveling Range
Typ. ± 5° (± 8.7%)
Leveling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10,000 mAh NiMH battery back
or 4 x 1.5V D alkaline batteries
Battery Life
HV1305C up to 45 hours
HV1305GC up to 30 hours
Battery Charging Time
< 10 hours
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes - IP66
Weight
3.49 kg (7.7 lbs)
(incl. Battery pack)
Low Voltage Indication
LED battery indicator
Product Dimensions
240mm x 280mm x 180mm
(9.45 in x 11.02 in x 7.09 in)
Warranty
5 Years
What's Includes
- HV1305C

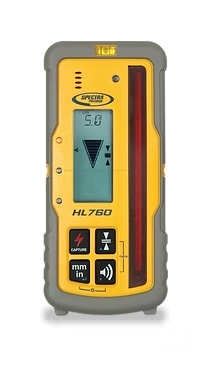

- Hl760
- C70
- RC1402
- Veritcal Adaptor
- Nimh Rechargeable Batteries
- Charger
- Ceiling Target
- Glasses
- Small Case
| Shipping | This Item Ships from Fremantle, Perth, Western Australia |
Please allow 2 - 10 days for your order to arrive.
Although Most Stocked Products will generally Ship Overnight. We source products from all over the world to bring you epic offers and the lowest prices. This means sometimes you have to wait a little longer to get your order but it's always worth it!
Returns are easy.
simply contact us for a returns number and send your item to our returns centre for fast processing. We'll get you a replacement or refund in a snap!
Description
A new generation in visibility and versatility is here!
The automatic self-leveling Spectra Precision® HV1305C red beam laser is the most rugged, cost-effective lasers that provide both horizontal and vertical alignment. Even in harsh job site conditions, the lasers deliver consistently reliable and accurate performance, enabling you to work faster and smarter.
Key features & benefits:
Complete leveling crew in a case - carrying case securely holds all components, tripod and grade rod (valid for the complete system kit)
-
Automatic horizontal and vertical self-leveling
-
Accuracy 1.5mm @ 30 m (1/16 inch @ 100 ft)
-
Working range of up to 1200m (4,000 ft) diameter with HL760
-
High-visibility beam – easily visible even in brightly lit conditions
-
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
-
Rotation selection of 0,10,100, 200,300 or 600 RPM
-
Remote control or remote control app allows operation of all laser functions from anywhere on the job site
-
Bluetooth connection allows laser control with a smartphone
-
Extremely durable and portable with a 5 Year warranty
Specifications
Leveling Accuracy
± 1.5 mm/30 m, 1/16“ @ 100 ft.
10 arc seconds
Operating Diameter w/HL760
Typ.1200 m (4000 feet)
Rotation
Preset 0, 10, 100, 200, 300 and 600 rpm Adjustable in 10 rpm increments >100rpm
Scan Angles
Preset 5°, 15°, 45° and 90°
Adjustable in 5° increments
Laser Type
630 – 643 nm
Laser Class
HV1305C Class 2
HV1305C Class 3
(Class 2 available in Europe)
Self-leveling Range
Typ. ± 5° (± 8.7%)
Leveling Indicators
LED flashes
Radio Range (HL760)
up to 100 m (330 ft)
Power Source
10,000 mAh NiMH battery back
or 4 x 1.5V D alkaline batteries
Battery Life
HV1305C up to 45 hours
HV1305GC up to 30 hours
Battery Charging Time
< 10 hours
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-25°C to +70°C (-13°F to +158°F)
Tripod Attachments
5/8 x 11 horizontally and vertically
Dust and Waterproof
Yes - IP66
Weight
3.49 kg (7.7 lbs)
(incl. Battery pack)
Low Voltage Indication
LED battery indicator
Product Dimensions
240mm x 280mm x 180mm
(9.45 in x 11.02 in x 7.09 in)
Warranty
5 Years
What's Includes
- HV1305C
- Hl760
- C70
- RC1402
- Veritcal Adaptor
- Nimh Rechargeable Batteries
- Charger
- Ceiling Target
- Glasses
- Small Case
